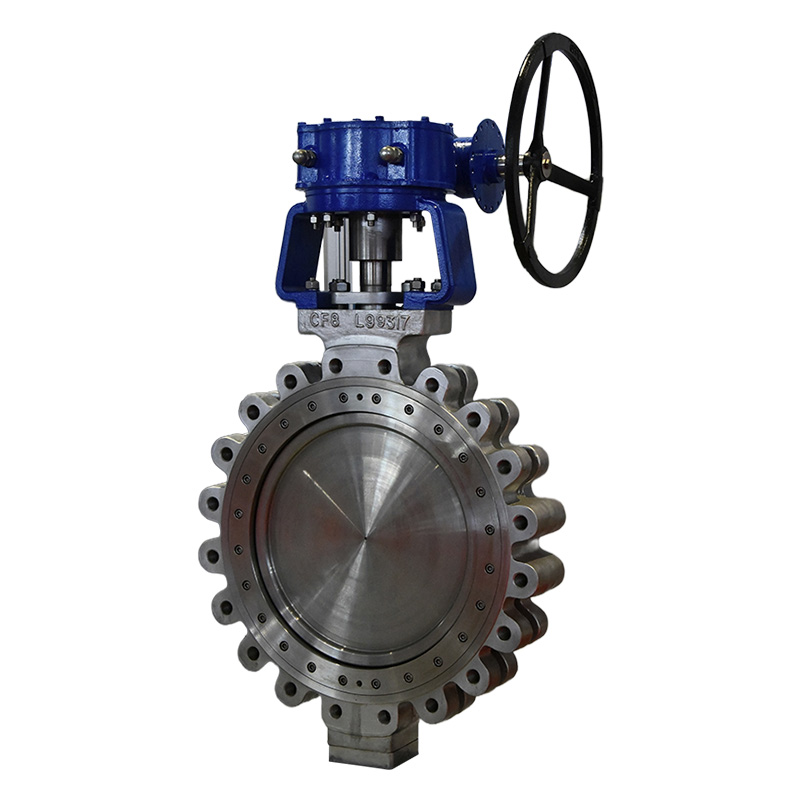

Product Overview
Lug butterfly valves are widely used in chemical, petrochemical, smelting, pharmaceutical, food and other industries as a regulating and intercepting device on the pipelines of SO2, steam, air, gas, ammonia, CO2, oil, water, brine, lye, seawater, phosphoric acid and other media.
Structural characteristics of lug butterfly valve:
(1) The unique design of three-way eccentricity makes frictionless transmission between the sealing surfaces, which prolongs the service life of the valve.
(2) Elastic seal is generated by torque.
(3) The ingenious wedge-shaped design makes the valve have the function of automatic sealing that is tighter and tighter, and the sealing surface has compensation and zero leakage.
(4) Small size, light weight, light operation, easy to install.
(5) Pneumatic and electric devices can be configured according to user requirements to meet the needs of remote control and program control.
(6) The material of the replacement parts can be applied to various media, and the lining can be anti-corrosion (lining F46, GXPP, PO, etc.).
Standard specification of lug butterfly valve:
1. Structural length implementation: GB/T12221-1989. DIN3202-1999. Standard.
2. The connecting flange conforms to: GB, DIN, ANSI, JIS, BS standards.
3. The test and inspection shall be in accordance with the provisions of GB/T13927-92 "General Valve Pressure Test" and API598 standard.
Main component materials
|
name |
material |
|
Valve body |
WCB、CFB、CF8M |
|
Valve plate |
WCB、CFB、CF8M |
|
Fabul |
304、316、1Cr13 |
|
Boots |
316、304 |
|
stuffing |
Flexible graphite, fluoroplastics |
Connection Size (mm)
|
DN |
H1 |
H2 |
H3 |
L |
φA |
φE |
φB |
φF |
DIN PN10 |
DIN PN16 |
ANSI B16.1 |
JIS 10K |
||||
|
φC |
N-φ |
φC |
N-φ |
φC |
N-φ |
φC |
N-φ |
|||||||||
|
DN40 |
70 |
110 |
32 |
35 |
12.7 |
92 |
70 |
9 |
110 |
4-φ18 |
110 |
4-φ18 |
98.5 |
4-φ16 |
105 |
4-φ19 |
|
DN50 |
76 |
168 |
32 |
45 |
12.7 |
92 |
70 |
9 |
125 |
4-φ18 |
125 |
4-φ18 |
120.5 |
4-φ19 |
120 |
4-φ19 |
|
DN65 |
89 |
175 |
32 |
48 |
12.7 |
92 |
70 |
9 |
145 |
4-φ18 |
145 |
4-φ18 |
139.5 |
4-φ19 |
140 |
4-φ19 |
|
DN80 |
95 |
181 |
32 |
49 |
12.7 |
92 |
70 |
9 |
160 |
4-φ18 |
160 |
8-φ18 |
152.5 |
4-φ19 |
150 |
8-φ19 |
|
DN100 |
114 |
200 |
32 |
55 |
15.8 |
92 |
70 |
9 |
180 |
8-φ18 |
180 |
8-φ18 |
190.5 |
8-φ19 |
175 |
8-φ19 |
|
DN125 |
127 |
213 |
32 |
58 |
19.05 |
92 |
70 |
9 |
210 |
8-φ18 |
210 |
8-φ18 |
216 |
8-φ22 |
210 |
8-φ23 |
|
DN150 |
140 |
225 |
32 |
59 |
19.05 |
92 |
70 |
9 |
240 |
8-φ23 |
240 |
8-φ23 |
241.5 |
8-φ22 |
240 |
8-φ23 |
|
DN200 |
177 |
260 |
36 |
64 |
22.2 |
125 |
102 |
11 |
295 |
8-φ23 |
295 |
12-φ23 |
298.5 |
8-φ22 |
290 |
12-φ23 |
|
DN250 |
203 |
292 |
36 |
70 |
28.6 |
125 |
102 |
11 |
350 |
12-φ23 |
355 |
12-φ27 |
362 |
12-φ25 |
355 |
12-φ25 |
|
DN300 |
242 |
337 |
36 |
80 |
31.8 |
150 |
125 |
13 |
400 |
12-φ23 |
410 |
12-φ27 |
432 |
12-φ25 |
400 |
16-φ25 |
|
DN350 |
267 |
368 |
45 |
80 |
31.8 |
150 |
125 |
13 |
460 |
16-φ23 |
470 |
16-φ27 |
476 |
12-φ29 |
445 |
16-φ25 |
|
DN400 |
298 |
400 |
51 |
90 |
33.3 |
210 |
165 |
22 |
515 |
16-φ27 |
525 |
16-φ30 |
539.5 |
16-φ29 |
510 |
16-φ27 |
|
DN450 |
318 |
422 |
51 |
109 |
38 |
210 |
165 |
22 |
565 |
20-φ27 |
585 |
20-φ30 |
578 |
16-φ32 |
565 |
20-φ27 |
|
DN500 |
349 |
479 |
64 |
135 |
41.15 |
210 |
165 |
22 |
620 |
20-φ27 |
650 |
20-φ33 |
635 |
20-φ32 |
620 |
20-φ27 |
|
DN600 |
410 |
562 |
70 |
156 |
50.65 |
300 |
254 |
18 |
725 |
20-φ30 |
770 |
20-φ36 |
749.5 |
20-φ35 |
730 |
24-φ33 |
|
DN700 |
520 |
624 |
72 |
169 |
55 |
300 |
254 |
18 |
840 |
24-φ30 |
840 |
24-φ36 |
- |
- |
840 |
24-φ33 |
|
DN750 |
495 |
648 |
72 |
175 |
55 |
300 |
254 |
18 |
- |
- |
- |
- |
914.5 |
4-11/4-6 |
900 |
24-φ33 |
|
DN800 |
591 |
672 |
83 |
195 |
55 |
300 |
254 |
18 |
950 |
24-φ30 |
950 |
24-φ39 |
977.9 |
4-11/4-6 |
950 |
28-φ33 |
|
DN900 |
611 |
768 |
77 |
211 |
74.25 |
300 |
254 |
18 |
1050 |
28-φ33 |
1050 |
28-φ39 |
1086 |
32-φ41 |
1050 |
28-φ33 |
|
DN1000 |
665 |
823 |
85 |
229 |
84.2 |
300 |
254 |
18 |
1160 |
28-φ42 |
1170 |
28-φ42 |
- |
- |
1160 |
28-φ36 |
